€664 – €7,894
Consensys EMG Development Kits

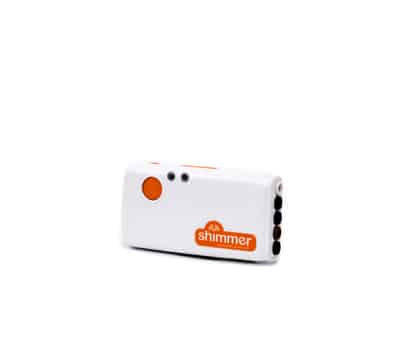

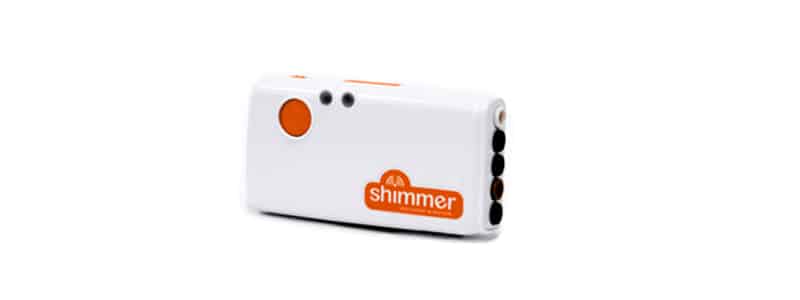

Development KitsThe Shimmer3 Consensys EMG Development Kit can be utilized to monitor two channels of (non-invasive) surface EMG, providing a representation of the muscle activity at the measurement site. The EMG Development Kit can also be utilized to monitor ECG (Electrocardiogram), recording the pathway of electrical impulses through the heart muscle. Combined with Shimmer’s integrated altimeter and 9DoF inertial sensor platform, greater context can be given to the wearer’s activity and condition in real-time. Note: EMG and ECG cannot be measured simultaneously from a single unit.
Description
The Shimmer3 Consensys EMG Development Kit can be utilized to monitor two channels of (non-invasive) surface EMG, providing a representation of the muscle activity at the measurement site. The EMG Development Kit can also be utilized to monitor ECG (Electrocardiogram), recording the pathway of electrical impulses through the heart muscle. Combined with Shimmer’s integrated altimeter and 9DoF inertial sensor platform, greater context can be given to the wearer’s activity and condition in real-time. Note: EMG and ECG cannot be measured simultaneously from a single unit.
All signals can be measured simultaneously and in real-time. With our ConsensysPRO software data can be streamed for live visualization, while raw data can also be logged to an SD card and accessed.

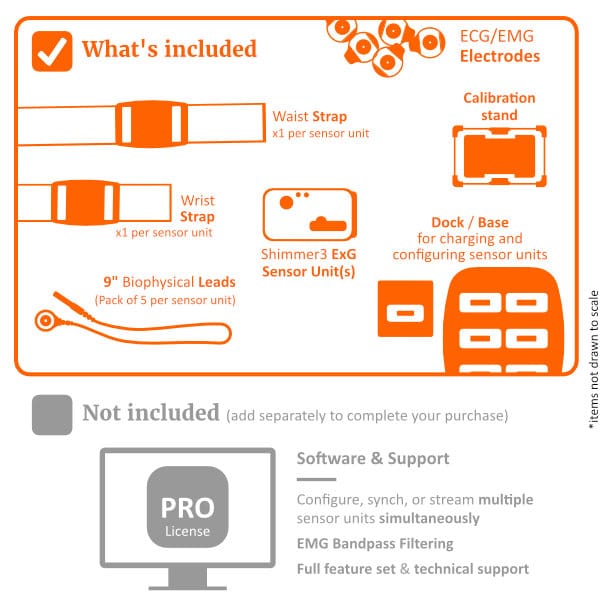

Kit Contents

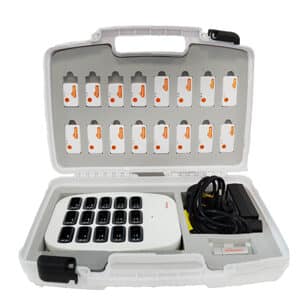

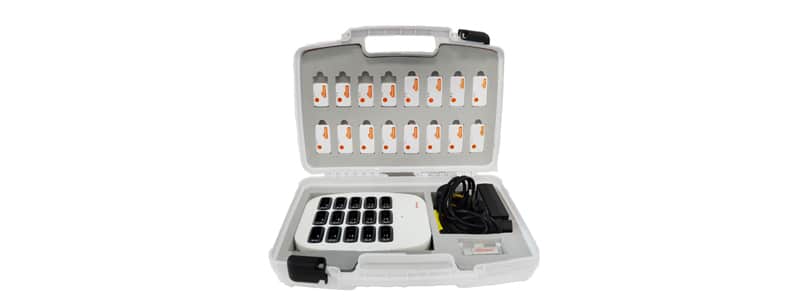

All development kits come equipped with the necessary accessories (straps, leads, electrodes, etc.) you need for your development. For a complete breakdown of what each kit contains please see the specs tab below.
Consensys Software
Our Consensys software application is available in two versions, ConsensysPRO and ConsensysBASIC. ConsensysBASIC is free to all Shimmer users, while a single license for ConsensysPRO is available for €199. ConsensysPRO is sold separately. An annual license can be purchased from our e store here.
The features of ConsensyPRO and ConsensysBASIC are outlined below.
Both logging data to your Shimmer’s SD card and streaming via Bluetooth are now supported by Consensys. Shimmer firmware is available open source on Github.
Functional Base
The Consensys hardware Base works with the Shimmer3 Kinematic and Biophysical sensors including ECG, EMG, Galvanic Skin Response, Optical Pulse and Heart Rate and which boast unrivaled performance levels and processing power. In developing the Consensys Hardware Base, we focused on adding value to your data collection process. The Base provides for the simultaneous management of all your Shimmer Sensors including charging, firmware updates, configuring sensors, retrieving and processing logged data.
Shimmer Embedded Features
- Wireless and robust body worn sensors.
- Raw and clinically relevant output of inertial and biophysical data, simultaneously.
- Clear status and activity indication.
- Accurate inter-sensor synchronization.
- Synchronization with complimentary systems via real-time clock configuration.
- Quick snap straps for rapid set up.
- Simple and intuitive unified graphical software for Windows.
- Downstream USB port for dock chaining and future peripherals.
- Designed for ease of use in research projects, repeatable clinical trials, system integration and product development.
Customization
This product provides developers with a comprehensive tool-set to support rapid design prototyping and implementation of wireless solutions based on the state of the art Shimmer3 platform.
Please contact our sales team to find out more about prototyping and product developments.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |

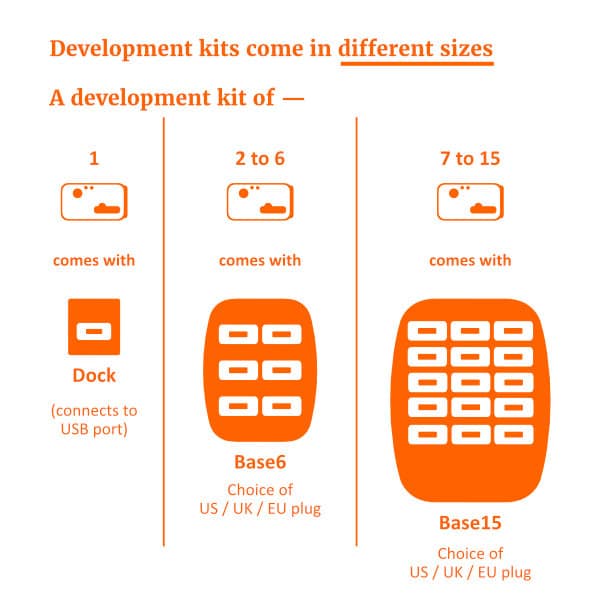

| Options | Consensys EMG Dev Kit x1 Shimmer – Dock, Consensys EMG Dev Kit x10 Shimmer – Base15, Consensys EMG Dev Kit x11 Shimmer – Base15, Consensys EMG Dev Kit x12 Shimmer – Base15, Consensys EMG Dev Kit x13 Shimmer – Base15, Consensys EMG Dev Kit x14 Shimmer – Base15, Consensys EMG Dev Kit x15 Shimmer – Base15, Consensys EMG Dev Kit x2 Shimmer – Base6, Consensys EMG Dev Kit x3 Shimmer – Base6, Consensys EMG Dev Kit x4 Shimmer – Base6, Consensys EMG Dev Kit x5 Shimmer – Base6, Consensys EMG Dev Kit x6 Shimmer – Base6, Consensys EMG Dev Kit x7 Shimmer – Base15, Consensys EMG Dev Kit x8 Shimmer – Base15, Consensys EMG Dev Kit x9 Shimmer – Base15 |
Features & Benefits
Based on programmable Shimmer EMG unit with versatile range of uses:
◉ Measure physiological data, like EMG or ECG, along with kinematic data from the Shimmer3 IMUs and altimeter.

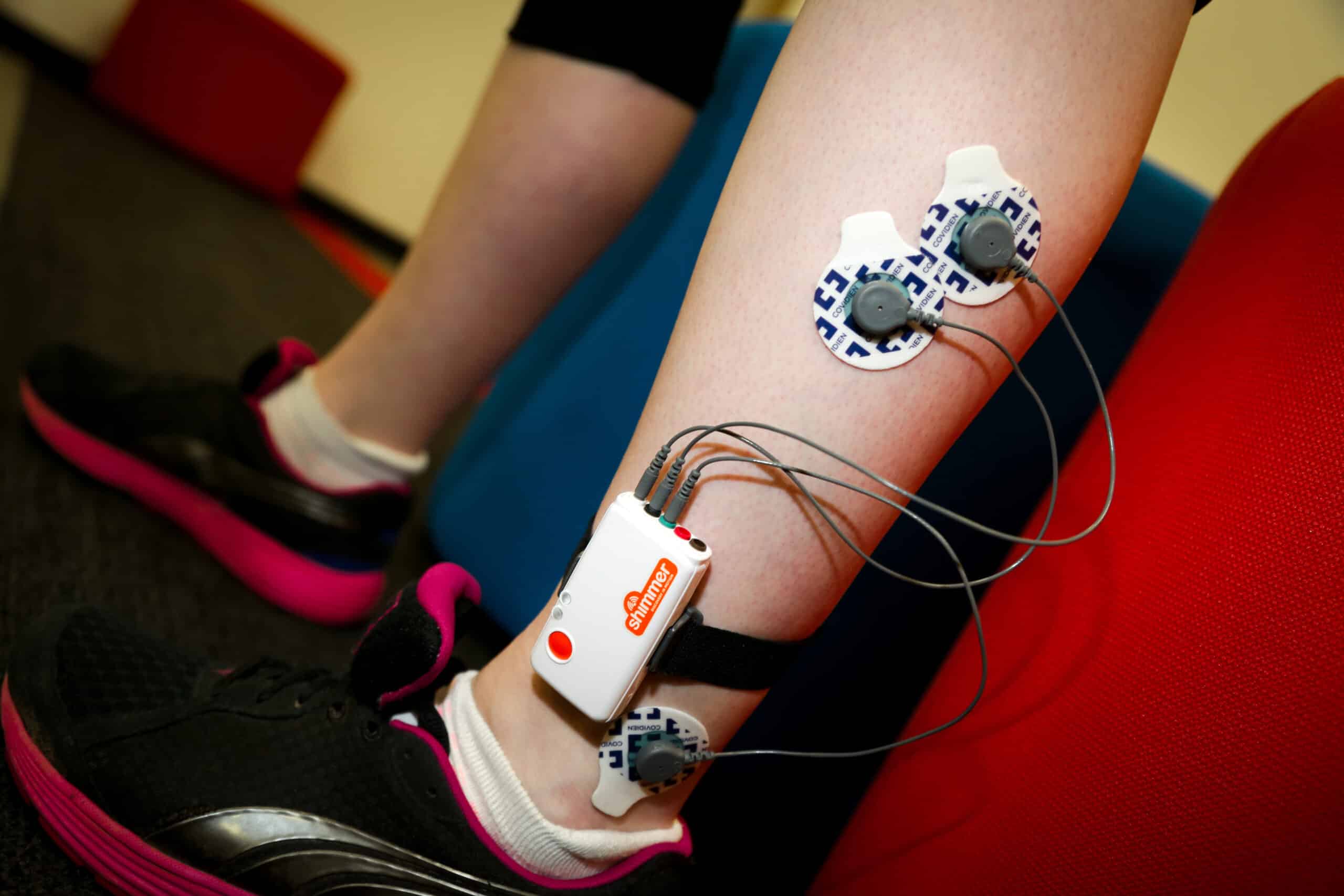

◉ Measure two channels of EMG data with a common reference electrode.
◉ Best data quality – Integrated altimeter and 9DoF inertial sensing via accelerometer, gyroscope and magnetometer, each with selectable range.
◉ Five-wire, four-lead ECG solution, measuring bipolar limb leads and user’s choice of V1 – V6.
◉ Software configurable right-leg drive for common-mode interference rejection.
◉ Software configurable amplifier gain and data rate.
◉ Respiration demodulation capability on-chip.
◉ Lead-off detection capability on-chip.
◉ Test signal on-chip for validation purposes.
◉ EEPROM storage device enables expansion board detection and identification, as well as 2032 bytes of data storage available to user.
Specs
Shimmer3 EMG x1
◉ Shimmer Dock
◉ Shimmer3 EMG x1
◉ 1x Wrist Straps
◉ 5x 9in Biophysical Leads
◉ 50x ECG Electrodes
Shimmer3 EMG x2
◉ Consensy Base6
◉ Shimmer3 EMG x2
◉ 2x Wrist Straps
◉ 10x 9in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 EMG x3
◉ Consensys Base6
◉ Shimmer3 EMG x3
◉ 3x Wrist Straps
◉ 15x 9in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 EMG x4
◉ Consensys Base6
◉ Shimmer3 EMG x4
◉ 4x Wrist Straps
◉ 20x 9in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 EMG x5
◉ Consensys Base6
◉ Shimmer3 EMG x5
◉ 5x Wrist Straps
◉ 25x 9in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 EMG x6
◉ Consensys Base6
◉ Shimmer3 EMG x6
◉ 6x Wrist Straps
◉ 30x 9in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 EMG x7
◉ Consensys Base15
◉ Shimmer3 EMG x7
◉ 7x Wrist Straps
◉ 35x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 EMG x8
◉ Consensys Base15
◉ Shimmer3 EMG x8
◉ 8x Wrist Straps
◉ 40x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 EMG x9
◉ Consensys Base15
◉ Shimmer3 EMG x9
◉ 9x Wrist Straps
◉ 45x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 EMG x10
◉ Consensys Base15
◉ Shimmer3 EMG x10
◉ 10x Wrist Straps
◉ 50x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 EMG x11
◉ Consensys Base15
◉ Shimmer3 EMG x11
◉ 11x Wrist Straps
◉ 55x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 EMG x12
◉ Consensys Base15
◉ Shimmer3 EMG x12
◉ 12x Wrist Straps
◉ 60x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 EMG x13
◉ Consensys Base15
◉ Shimmer3 EMG x13
◉ 13x Wrist Straps
◉ 65x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 EMG x14
◉ Consensys Base15
◉ Shimmer3 EMG x14
◉ 14x Wrist Straps
◉ 70x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 EMG x15
◉ Consensys Base15
◉ Shimmer3 EMG x15
◉ 15x Wrist Straps
◉ 75x 9in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Apps
◉ Affective computing and cognitive factors
◉ Connected/ digital health solutions
◉ Fatigue Analysis
◉ Atrial Fibrillation
◉ Neuro Rehabilitation
◉ Tremor Analysis
◉ Orthopaedics
◉ Sports technique performance and medicine
Documentation
◉ Download Consensys Spec Sheet (820 KB)
◉ Download EMG User Guide V1.12 (2 MB)
◉ Download ExG As Three Unipolar Input User Guide V0.04 (1 MB)
◉ Download Shimmer ECG/EMG/Ebio Spec Sheet
◉ Download Shimmer3 EMG Sample Data (320 KB)
