€664 – €7,894
Consensys ECG Development Kits

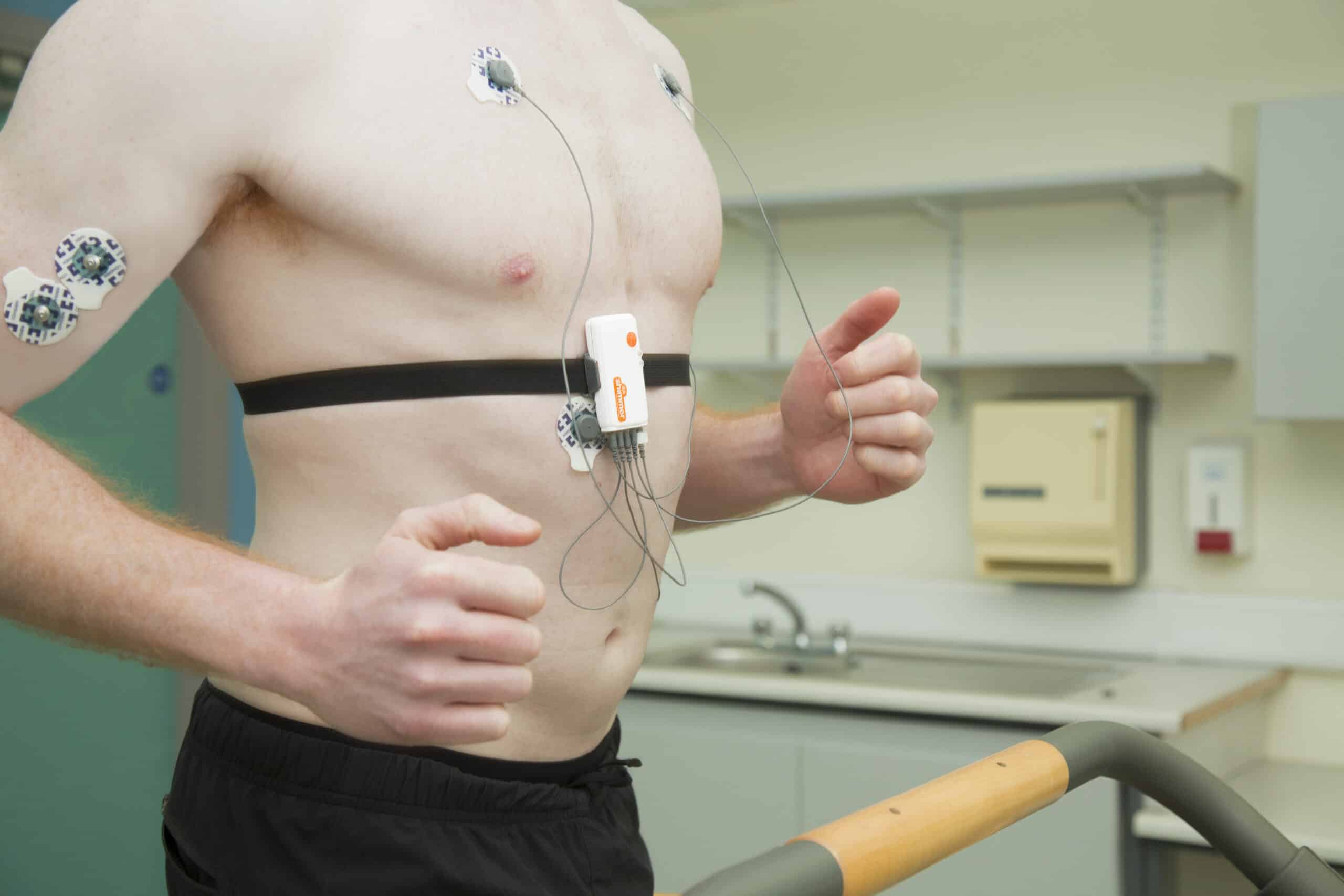

Development KitsThe Shimmer3 Consensys ECG Development Kit can be utilized to monitor 4 channels of ECG (Electrocardiogram), recording the pathway of electrical impulses through the heart muscle. The ECG Development Kit can also be utilized to monitor (non-invasive) surface EMG, providing a representation of the muscle activity at the measurement site. Combined with Shimmer’s integrated 9DoF inertial + altimeter sensor platform, greater context can be given to the wearer’s activity and condition in real-time. Note: ECG and EMG cannot be measured simultaneously from a single unit.
Description
The Shimmer3 Consensys ECG Development Kit can be utilized to monitor 4 channels of ECG (Electrocardiogram), recording the pathway of electrical impulses through the heart muscle. The ECG Development Kit can also be utilized to monitor (non-invasive) surface EMG, providing a representation of the muscle activity at the measurement site. Combined with Shimmer’s integrated 9DoF inertial + altimeter sensor platform, greater context can be given to the wearer’s activity and condition in real-time. Note: ECG and EMG cannot be measured simultaneously from a single unit.

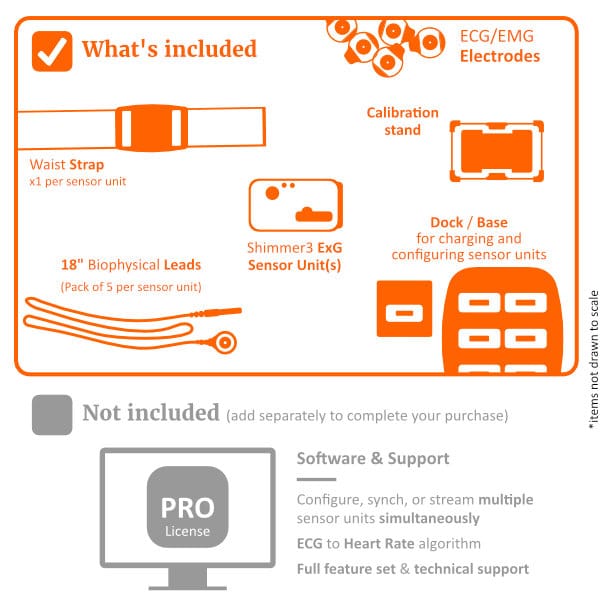

Kit Contents
All development kits come equipped with the necessary accessories (straps, leads, electrodes, etc.) you need for your development. For a complete breakdown of what each kit contains please see the specs tab below.
Consensys Software
Our Consensys software application is available in two versions, ConsensysPRO and ConsensysBASIC. ConsensysBASIC is free to all Shimmer users, while a single license for ConsensysPRO is available for €199. ConsensysPRO is sold separately. An annual license can be purchased from our e store here.
The features of ConsensyPRO and ConsensysBASIC are outlined below.
Both logging data to your Shimmer’s SD card and streaming via Bluetooth are now supported by Consensys. Shimmer firmware is available open source on Github.
Functional Base

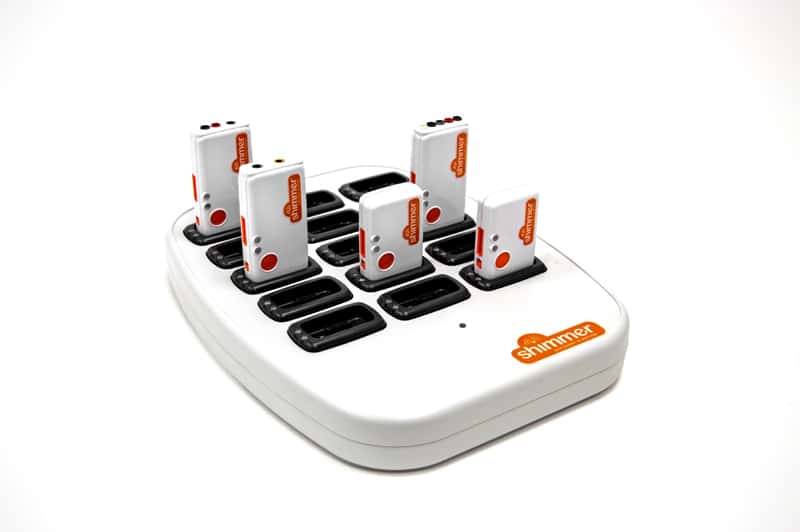

The Consensys hardware Base works with the Shimmer3 Kinematic and Biophysical sensors including ECG, EMG, Galvanic Skin Response, Optical Pulse and Heart Rate and which boast unrivaled performance levels and processing power. In developing the Consensys Hardware Base, we focused on adding value to your data collection process. The Base is available in both 6 Shimmer and 15 Shimmer configurations, for the simultaneous management of all your Shimmer Sensors.
Shimmer Embedded Features
- Wireless and robust body worn sensors.
- Raw and clinically relevant output of inertial and biophysical data, simultaneously.
- Clear status and activity indication.
- Accurate inter-sensor synchronization.
- Synchronization with complimentary systems via real-time clock configuration.
- Quick snap straps for rapid set up.
- Simple and intuitive unified graphical software for Windows.
- Downstream USB port for dock chaining and future peripherals.
- Designed for ease of use in research projects, repeatable clinical trials, system integration and product development.
Customization
This product provides developers with a comprehensive tool-set to support rapid design prototyping and implementation of wireless solutions based on the state of the art Shimmer3 platform.
Please contact our sales team to find out more about prototyping and product developments.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
| Options | Consensys ECG Dev Kit x1 Shimmer-Dock, Consensys ECG Dev Kit x2 Shimmer-Base6, Consensys ECG Dev Kit x3 Shimmer-Base6, Consensys ECG Dev Kit x4 Shimmer – Base6, Consensys ECG Dev Kit x5 Shimmer – Base6, Consensys ECG Dev Kit x6 Shimmer – Base6, Consensys ECG Dev Kit x7 Shimmer – Base15, Consensys ECG Dev Kit x8 Shimmer – Base15, Consensys ECG Dev Kit x9 Shimmer – Base15, Consensys ECG Dev Kit x10 Shimmer – Base15, Consensys ECG Dev Kit x11 Shimmer – Base15, Consensys ECG Dev Kit x12 Shimmer – Base15, Consensys ECG Dev Kit x13 Shimmer – Base15, Consensys ECG Dev Kit x14 Shimmer – Base15, Consensys ECG Dev Kit x15 Shimmer – Base15 |
Features & Benefits
The ECG Development Kit supplies researchers and developers with the necessary supports to realise market ready wireless solutions.
◉ Best data quality – Integrated altimeter and 9DoF inertial sensing via accelerometer, gyroscope and magnetometer, each with selectable range.
◉ Five wire, four lead ECG solution, measuring bipolar limb leads and user’s choice of V1-V6.
◉ Measure two channels of EMG data with a common reference electrode.
◉ Software configurable right-leg drive for common-mode interference rejection.
◉ Software configurable amplifier gain and data rate.
◉ Respiration demodulation capability on-chip.
◉ Lead-off detection capability on-chip.
◉ Test signal on-chip for validation purposes.
◉ EEPROM storage device enables expansion board detection and identification, as well as 2032 bytes of data storage available to user.
Specs

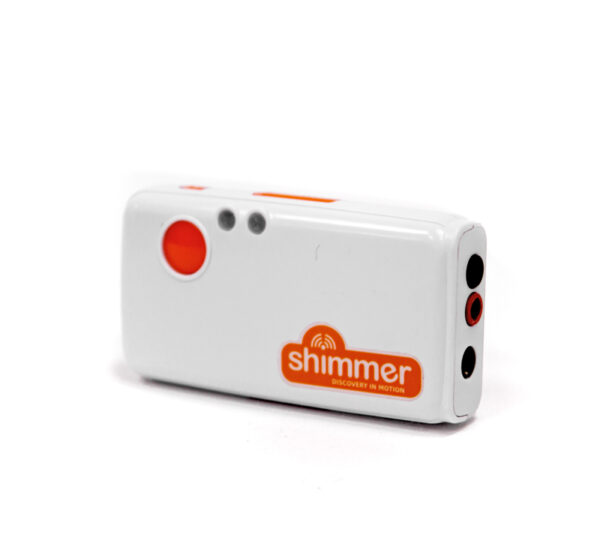

Shimmer3 ECG x1
◉ Shimmer Dock
◉ Shimmer3 ECG x1
◉ 1x Waist Straps
◉ 5x 18in Biophysical Leads
◉ 50x ECG Electrodes
Shimmer3 ECG x2
◉ Consensys Base6
◉ Shimmer3 ECG x2
◉ 2x Waist Straps
◉ 10x 18in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 ECG x3
◉ Consensys Base6
◉ Shimmer3 ECG x3
◉ 3x Waist Straps
◉ 15x 18in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 ECG x4
◉ Consensys Base6
◉ Shimmer3 ECG x4
◉ 4x Waist Straps
◉ 20x 18in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 ECG x5
◉ Consensys Base6
◉ Shimmer3 ECG x5
◉ 5x Waist Straps
◉ 25x 18in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 ECG x6
◉ Consensys Base6
◉ Shimmer3 ECG x6
◉ 6x Waist Straps
◉ 30x 18in Biophysical Leads
◉ 20x Alcohol Swabs
◉ 100x ECG Electrodes
Shimmer3 ECG x7
◉ Consensys Base15
◉ Shimmer3 ECG x7
◉ 7x Waist Straps
◉ 35x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 ECG x8
◉ Consensys Base15
◉ Shimmer3 ECG x8
◉ 8x Waist Straps
◉ 40x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 ECG x9
◉ Consensys Base15
◉ Shimmer3 ECG x9
◉ 9x Waist Straps
◉ 45x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 ECG x10
◉ Consensys Base15
◉ Shimmer3 ECG x10
◉ 10x Waist Straps
◉ 50x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 ECG x11
◉ Consensys Base15
◉ Shimmer3 ECG x11
◉ 11x Waist Straps
◉ 55x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 ECG x12
◉ Consensys Base15
◉ Shimmer3 ECG x12
◉ 12x Waist Straps
◉ 60x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 ECG x13
◉ Consensys Base15
◉ Shimmer3 ECG x13
◉ 13x Waist Straps
◉ 65x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 ECG x14
◉ Consensys Base15
◉ Shimmer3 ECG x14
◉ 14x Waist Straps
◉ 70x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Shimmer3 ECG x15
◉ Consensys Base15
◉ Shimmer3 ECG x15
◉ 15x Waist Straps
◉ 75x 18in Biophysical Leads
◉ 40x Alcohol Swabs
◉ 150x ECG Electrodes
Apps
◉ Affective computing and cognitive factors
◉ Connected/ digital health solutions
◉ Fatigue Analysis
◉ Atrial Fibrillation
◉ Neuro Rehabilitation
◉ Tremor Analysis
◉ Orthopaedics
◉ Sports technique performance and medicine
Documentation
◉ Download Consensys Spec Sheet (820 KB)
◉ Download ECG User Guide V1.12 (3 MB)
◉ Download ExG As Three Unipolar Input User Guide V0.04 (1 MB)
◉ Download Shimmer ECG/EMG/Ebio Spec Sheet
◉ Download Capture And Stream Sensor Data To An Android Device (1 MB)
◉ Download Capture And Stream Sensor Data To A PC (2 MB)
◉ Download Purchase Agreement Policy (175 KB)
◉ Download Shimmer3 Respiration Sample Data (3 MB)
◉ Download Shimmer3 ECG Sample Data (3 MB)
