$870 – $10,078
Consensys GSR Development Kits
Development KitsConsensys GSR by Shimmer is available to individuals, researchers and corporate R&D departments that seek to monitor physical activity and emotional arousal.
Description
Consensys GSR by Shimmer is available to individuals, researchers and corporate R&D departments that seek to monitor physical activity and emotional arousal. Consensys GSR allows users to capture:
- Skin conductance i.e. Galvanic Skin Response (Arousal, Excitement).
- Photoplethysmography (PPG).
- Continuous Heart Rate (Heart Rate Variability, Stress, Relaxation).
- Electrodermal Activity (EDA).
- 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer & integrated altimeter.
All signals can be measured simultaneously and in real-time. With our ConsensysPRO software data can be streamed for live visualization, while raw data can also be logged to an SD card and accessed.

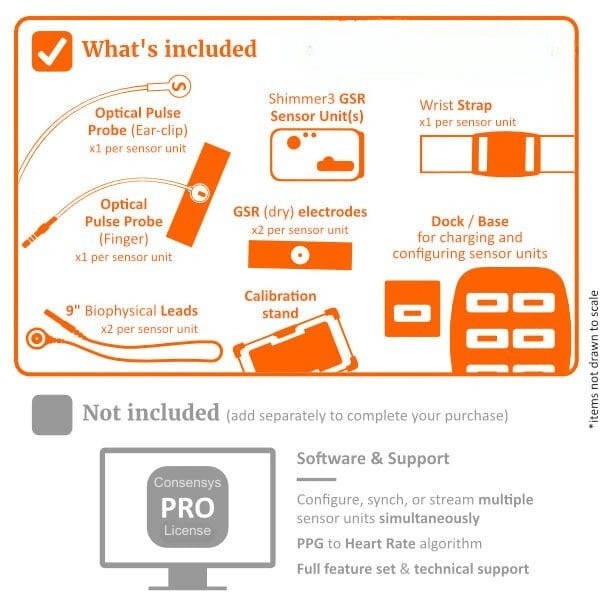

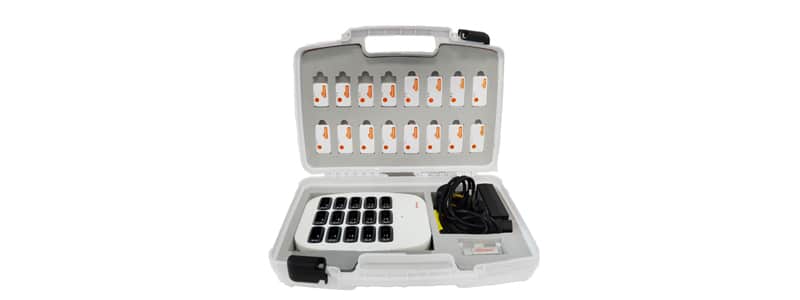

Kit Contents
All development kits come equipped with the necessary accessories (straps, leads, electrodes, etc.) you need for your development. For a complete breakdown of what each kit contains please see the specs tab below. Now available for one to fifteen Shimmer3 GSR sensors depending on the number of devices you require. Larger kits available on request.
Consensys Software
Our Consensys software application is available in two versions, ConsensysPRO and ConsensysBASIC. ConsensysBASIC is free to all Shimmer users, while a single license for ConsensysPRO is available for €199. ConsensysPRO is sold separately. An annual license can be purchased from our e store here.
The features of ConsensyPRO and ConsensysBASIC are outlined below.
Both logging data to your Shimmer’s SD card and streaming via Bluetooth are now supported by Consensys. Shimmer firmware is available open source on Github.
Functional Base
The Consensys hardware Base works with the Shimmer3 Kinematic and Biophysical sensors including ECG, EMG, Galvanic Skin Response, Optical Pulse and Heart Rate and which boast unrivaled performance levels and processing power. In developing the Consensys Hardware Base, we focused on adding value to your data collection process. The Base provides for the simultaneous management of all your Shimmer Sensors including charging, firmware updates, configuring sensors, retrieving and processing logged data.
Shimmer Embedded Features
- Wireless and robust body worn sensors.
- Raw and clinically relevant output of inertial and biophysical data, simultaneously.
- Clear status and activity indication.
- Accurate inter-sensor synchronization.
- Synchronization with complimentary systems via real-time clock configuration.
- Quick snap straps for rapid set up.
- Simple and intuitive unified graphical software for Windows.
- Downstream USB port for dock chaining and future peripherals.
- Designed for ease of use in research projects, repeatable clinical trials, system integration and product development.
Customization
This product provides developers with a comprehensive tool-set to support rapid design prototyping and implementation of wireless solutions based on the state of the art Shimmer3 platform.
Please contact our sales team to find out more about prototyping and product developments.
Additional information
Weight | 1 kg |
---|---|
Dimensions | 20 × 20 × 20 cm |
Options | Consensys GSR Dev Kit x1 – Dock, Consensys GSR Dev Kit x10 – Base15, Consensys GSR Dev Kit x11 – Base15, Consensys GSR Dev Kit x12 – Base15, Consensys GSR Dev Kit x13 – Base15, Consensys GSR Dev Kit x14 – Base15, Consensys GSR Dev Kit x15 – Base15, Consensys GSR Dev Kit x2 – Base6, Consensys GSR Dev Kit x3 – Base6, Consensys GSR Dev Kit x4 – Base6, Consensys GSR Dev Kit x5 – Base6, Consensys GSR Dev Kit x6 – Base6, Consensys GSR Dev Kit x7 – Base15, Consensys GSR Dev Kit x8 – Base15, Consensys GSR Dev Kit x9 – Base15 |
Features & Benefits
The kit supplies researchers and developers with the necessary supports to realise market ready wireless solutions:
Highly Configurable
Can be programmed to meet your specific application’s needs, with configurable sensitivity, sampling rate, transmission rate and frequency, communication protocols, and packet formats.
Compatibility
Shimmer platform easily integrates and interacts with existing systems and technologies.
No Need for Proprietary Software
Full access to all raw sensed data to interpret data specific to your application, product or service requirements.
Highlights
Based on programmable Shimmer unit with versatile range of uses:
◉ Boasts an additional 3.5mm jack connector for 2 extra channels for analogue or digital data capture.
◉ Sensing capabilities include – Accelerometer, Gyroscope, Magnetometer and Integrated Altimeter.
◉ Highly configurable, multi-functional sensing platform for wireless sensor network / ad-hoc wireless network.
◉ Integrated Bluetooth radio for wireless communications, peer-to-peer contact, and mesh networking.
◉ Local storage via up to 8GB microSD card for data logging applications.
◉ Four digitally controlled GSR measurement ranges which developers use to ensure accurate measurements.
◉ GSR gain selection can be hard-coded or automatically selected.
◉ Phasic conductance can be observed with respect to baseline level of skin conductance.
◉ Estimation of Heart Rate using Optical Pulse (PPG) Sensing Probe.
Specs
Consensys GSR x1
◉ Shimmer Dock
◉ Shimmer3 GSR x1
◉ 1x Wrist Straps
◉ 1x Optical Pulse Sensor (finger)
◉ 2x Biophysical Leads
◉ 2x GSR Dry Finger Electrodes
◉ 1x Optical Pulse Sensor Ear Clip (earlobe)
Consensys GSR x2
◉ Consensys Base6
◉ Shimmer3 GSR x2
◉ 2x Wrist Straps
◉ 2x Optical Pulse Sensor (finger)
◉ 4x Biophysical Leads
◉ 4x GSR Dry Finger Electrodes
◉ 2x Optical Pulse Sensor Ear Clip (earlobe)
Consensys GSR x3
◉ Consensys Base6
◉ Shimmer3 GSR x3
◉ 3x Wrist Straps
◉ 3x Optical Pulse Sensor (finger)
◉ 6x Biophysical Leads
◉ 6x GSR Dry Finger Electrodes
◉ 3x Optical Pulse Ear Clip (earlobe)
Consensys GSR x4
◉ Consensys Base6
◉ Shimmer3 GSR x4
◉ 4x Wrist Straps
◉ 4x Optical Pulse Sensor (finger)
◉ 8x Biophysical Leads
◉ 8x GSR Dry Finger Electrodes
◉ 4x Optical Pulse Ear Clip (earlobe)
Consensys GSR x5
◉ Consensys Base6
◉ Shimmer3 GSR x5
◉ 5x Wrist Straps
◉ 5x Optical Pulse Sensor (finger)
◉ 10x Biophysical Leads
◉ 10x GSR Dry Finger Electrodes
◉ 5x Optical Pulse Ear Clip (earlobe)
Consensys GSR x6
◉ Consensys Base6
◉ Shimmer3 GSR x6
◉ 6x Wrist Straps
◉ 6x Optical Pulse Sensor (finger)
◉ 12x Biophysical Leads
◉ 12x GSR Dry Finger Electrodes
◉ 6x Optical Pulse Ear Clip (earlobe)
Consensys GSR x7
◉ Consensys Base15
◉ Shimmer3 GSR x7
◉ 7x Wrist Straps
◉ 7x Optical Pulse Sensor (finger)
◉ 14x Biophysical Leads
◉ 14x GSR Dry Finger Electrodes
◉ 7x Optical Pulse Ear Clip (earlobe)
Consensys GSR x8
◉ Consensys Base15
◉ Shimmer3 GSR x8
◉ 8x Wrist Straps
◉ 8x Optical Pulse Sensor (finger)
◉ 16x Biophysical Leads
◉ 16x GSR Dry Finger Electrodes
◉ 8x Optical Pulse Ear Clip (earlobe)
Consensys GSR x9
◉ Consensys Base15
◉ Shimmer3 GSR x9
◉ 9x Wrist Straps
◉ 9x Optical Pulse Sensor (finger)
◉ 18x Biophysical Leads
◉ 18x GSR Dry Finger Electrodes
◉ 9x Optical Pulse Ear Clip (earlobe)
Consensys GSR x10
◉ Consensys Base15
◉ Shimmer3 GSR x10
◉ 10x Wrist Straps
◉ 10x Optical Pulse Sensor (finger)
◉ 20x Biophysical Leads
◉ 20x GSR Dry Finger Electrodes
◉ 10x Optical Pulse Ear Clip (earlobe)
Consensys GSR x11
◉ Consensys Base15
◉ Shimmer3 GSR x11
◉ 11x Wrist Straps
◉ 11x Optical Pulse Sensor (finger)
◉ 22x Biophysical Leads
◉ 22x GSR Dry Finger Electrodes
◉ 11x Optical Pulse Ear Clip (earlobe)
Consensys GSR x12
◉ Consensys Base15
◉ Shimmer3 GSR x12
◉ 12x Wrist Straps
◉ 12x Optical Pulse Sensor (finger)
◉ 24x Biophysical Leads
◉ 24x GSR Dry Finger Electrodes
◉ 12x Optical Pulse Ear Clip (earlobe)
Consensys GSR x13
◉ Consensys Base15
◉ Shimmer3 GSR x13
◉ 13x Wrist Straps
◉ 13x Optical Pulse Sensor (finger)
◉ 26x Biophysical Leads
◉ 26x GSR Dry Finger Electrodes
◉ 13x Optical Pulse Ear Clip (earlobe)
Consensys GSR x14
◉ Consensys Base15
◉ Shimmer3 GSR x14
◉ 14x Wrist Straps
◉ 14x Optical Pulse Sensor (finger)
◉ 28x Biophysical Leads
◉ 28x GSR Dry Finger Electrodes
◉ 14x Optical Pulse Ear Clip (earlobe)
Consensys GSR x15
◉ Consensys Base15
◉ Shimmer3 GSR x15
◉ 15x Wrist Straps
◉ 15x Optical Pulse Sensor (finger)
◉ 30x Biophysical Leads
◉ 30x GSR Dry Finger Electrodes
◉ 15x Optical Pulse Ear Clip (earlobe)
Applications
◉ Stress monitoring in everyday life
◉ Stress monitoring at the workplace
◉ Seizure detection in epilespsy
◉ Child and teenage epilepsy
◉ Care delivery: physician-patient relationship
◉ Biofeedback stress training
◉ Psyschologist therapy monitoring
◉ Affective Computing and Cognitive Factors Research
◉ Marketing Research
Documentation
◉ Download Consensys Spec Sheet (820 KB)
◉ Download GSR+ User Guide Rev1.13 (2 MB)
◉ Download Optical Pulse Sensing Probe User Guide Rev1.6 (859 KB)
◉ Download GSR+ Spec Sheet
◉ Download Purchase Agreement Policy (175 KB)
◉ Download Shimmer3 GSR And PPG Sample Data (245 KB)
